WALBRO 525 L/HR FUEL PUMP F90000285 "With Strainer And Connector"

Beware of the Current (AMPS) draw of these pumps. Some standard fuel bulkhead pins cannot take the load and will burn out***
Refer to your Auto Electrician for correct installation.

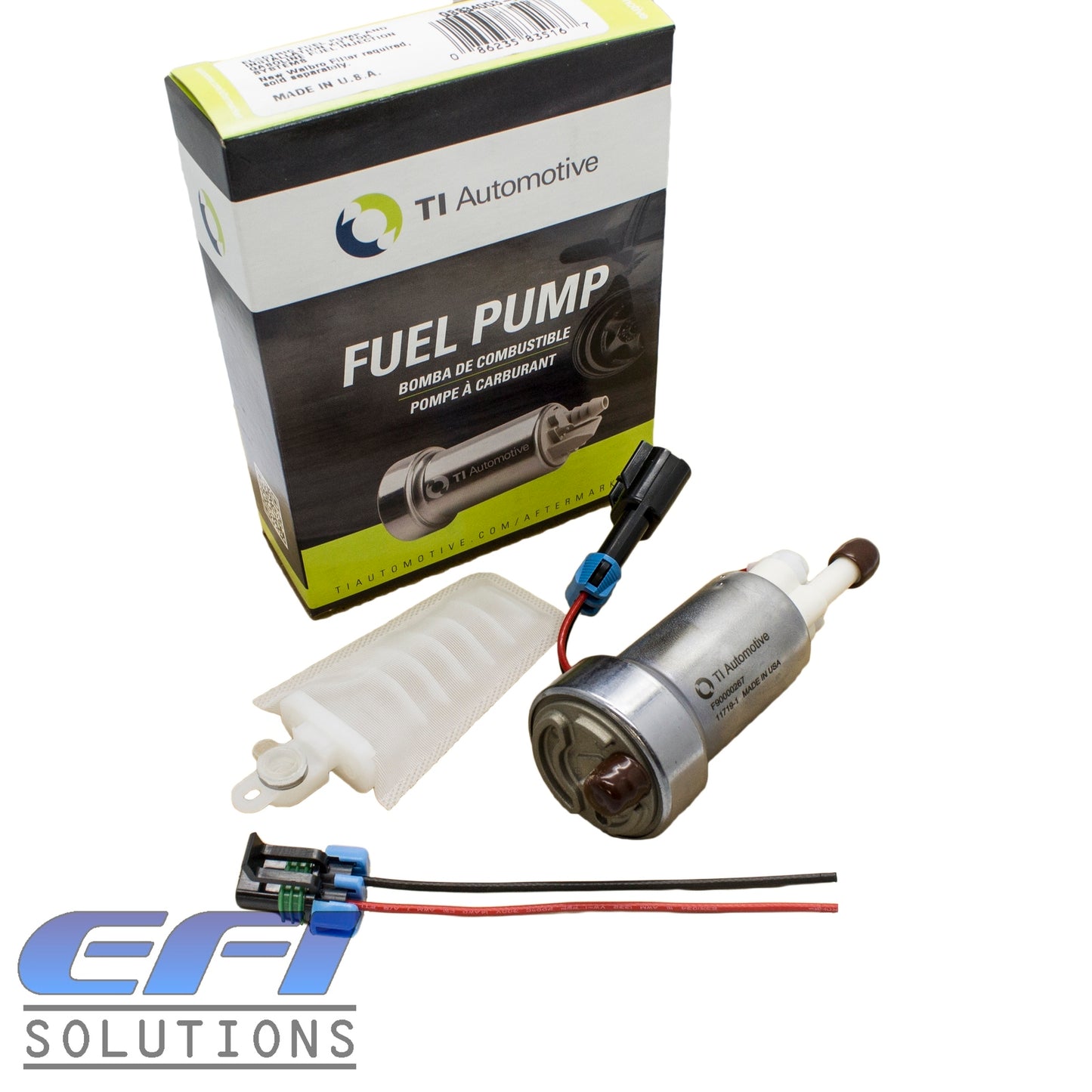

Kit includes:
1x Genuine Walbro 525 Pump
1x Electrical Connector
1x Universal Strainer
1x Walbro Box

Fuel: GAS & E85
Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD
Flow Rate: 470lph @ 40psi (120+ gph)
Test Voltage: 13.5 Volts

F90000285
